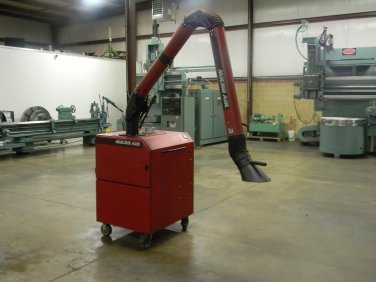

Capture Hood: 24-gauge steel . Mesh
guard prevents large objects from entering the hose. Light and blower
controls located on hood for each operation.
Motor: Single-speed, 5 hp, 230/460 volt, 60 Hz, TEFC motor. Maximum
14.0 / 7.0 amps.
Impeller Wheel: 14-inch diameter, backward inclined, high airflow wheel,
3500 maximum rpm.
Air Volume: 1500 CFM*.
* Nominal CFM rating.
Electrical: 230/460 volt, 3-phase electrical plug included with 10-foot power
cord. Control cord for light in hood mounts flush to top of cabinet.
Unit on/off and light on/off switches operate at 12/24 VAC for operaor
safety.
Motor Starter: Motor starter contactor and overload relay are standard
equipment.
Noise Level: 79 dBA at 6' from exhaust.
Controls: Hood-mounted, motor/blower on/off switch and light on/off switch,
cartridge backflush toggle valve mounted on front of cabinet for easy
access and protection from breaking.
Gauge: Magnahelic gauge is standard.
Overall Dimensions: 48" h x 36½" w x 35" l.
Weight: 475 lbs.
Cabinet: 16-gauge welded galvanized steel with external surfaces ground
smooth.
Finish: Industrial grade, textured baked crimson red enamel paint, inside
and out.
Filtration: Two each, high efficiency flame retardant cartridges. Each
cartridge has 214 sq. ft. of media material (428 sq. ft. total), and
finger grip handles for easy removal.
Filter Cleaning: Self-cleaning reverse pulse jet backflush system. Uses
80-120 PSI and 2 SCF of shop compressed air. Pipe fitting located
on front of cabinet, 1/4" NPT male nipple.
Cleaning Tubes: Heavy duty tubes with predrilled air exit holes allows for
total backflushing of cartridges for better cleaning.
Filter Access: Side load through hinged door for easy access.
Spark/Dust Tray: Two each dust holding trays, 25/8" x 5¾" x 27¼", easily
removed through side door for cleaning.
Airflow: Portable source capture model. Air flows through hose and out of
the bottom of unit.
Arm Length: 8' and 10'
Handle: Solid, preformed coated handle for operator convenience.
SPECIFICATIONS AND EQUIPMENT SUBJECT TO VERIICATION WITH CORPORATE APPROVAL. FULL PAYMENT MUST BE RECEIVED BEFORE PREPARATION OF MACHINE FOR SHIPMENT WILL BEGIN. ALL TERMS AND CONDITIONS ARE SUBJECT TO AVAILABILITY. MACHINE IS SOLD “AS IS WHERE IS” NO WARRANTY EXPRESSED OR IMPLIED
WE WOULD LIKE ALL BUYERS TO INSPECT MACHINE UNDER POWER PRIOR TO PURCHASING.
Local pick up only
